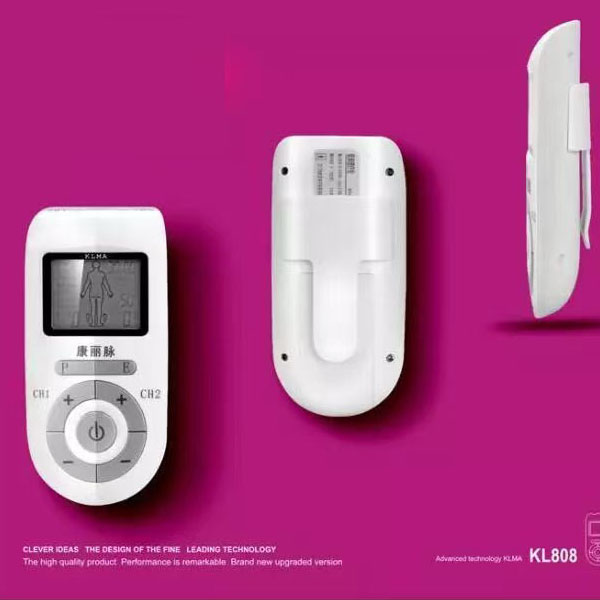

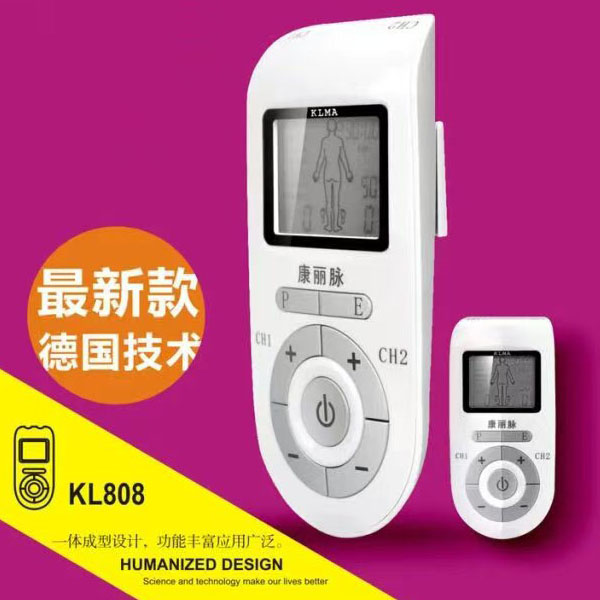

The Low-Frequency Therapy Device KLM808 is a physiotherapy instrument that utilizes low-frequency electrical stimulation to relieve pain, improve muscle function, and promote overall muscular health. By delivering controlled electrical impulses, the device helps stimulate nerves and muscles to achieve therapeutic effects.

Therapy Application

Treatment Program Selection

Select an appropriate treatment program based on the user’s needs. Place the electrodes on the correct body area; conductive gel or a lubricant may be used to improve contact.

Output Intensity Adjustment

Adjust the output intensity according to the user’s comfort level. If the stimulation feels weak during treatment, the intensity may be increased gradually.

Output Rhythm Adjustment

During treatment, users may adjust the output rhythm (treatment time and rest time) to achieve the most comfortable sensation.

Usage Time Limitation

The total daily usage time should not exceed 90 minutes. Proper hygiene and cleanliness of the device should be maintained.

Indications and Therapeutic Effects

Massage

Improves tissue oxygenation, restores muscle contraction function, promotes blood circulation, relaxes the body and mind, reduces mental stress, alleviates tissue fatigue, improves sleep quality, and enhances overall quality of life.

Lower Back Pain

Relieves pain through the release of endorphin-like substances, increases blood flow, and is suitable for pain relief in chronic lower back pain.

Dysmenorrhea

Promotes blood circulation, increases local blood flow, helps inhibit abnormal uterine contractions, and relieves spasmodic pain caused by ischemia of uterine smooth muscles.

Muscle Training

Muscle Pain, Sports Bruises, Strains, and Sprains

Improves muscle contraction quality, restores or enhances cellular exchange, increases muscle fiber diameter, improves muscle endurance, prevents muscle atrophy and overuse injuries, strengthens muscles, improves muscle shape, and promotes muscle regeneration.

Slimming and Weight Loss

Stimulates muscles, improves oxygen absorption capacity, enhances endurance performance, improves overall physical health, reduces excess body fat, and increases compound amine levels in the blood.

Tapping and Kneading Modes

Relieves pain caused by nerve conduction blockage or poor blood circulation, reduces muscle tension, and relaxes muscles. Suitable for sports strains, sprains, elbow pain, cervical spine pain, and various other pain conditions.

Battery Usage and Replacement

Low Battery Indicator

When the battery symbol appears on the display, the power voltage is low and the batteries must be replaced.

Battery Specification

This device uses three AAA (1.5V) batteries. Do not use batteries of other specifications. Alkaline batteries are recommended.

Operating Modes

Power-Off Mode

No display on the LCD screen.

Power-On Mode

Allows time setting, treatment program selection, and intensity adjustment.

Treatment Mode

Treatment begins, the timer counts down, and therapy parameters are output.

Pause Mode

Temporarily pauses treatment and can return to treatment mode.

Operating Instructions

Operations in Power-Off Mode

Press the power button to enter standby mode.

Operations in Power-On Mode

• Power Off: Press the power button to turn off the device.
• Set Treatment Time: Press the [E] key to set treatment time (range: 5–90 minutes, adjustable in 5-minute increments).
• Select Treatment Program: Press the [P] key to choose the desired program.
• Adjust Treatment Intensity: Press [CH1+] or [CH2+] to increase intensity. Maximum intensity level is 50.

Operations in Treatment Mode

• Adjust Intensity:
• Press [CH1+] / [CH2+] to increase intensity
• Press [CH1-] / [CH2-] to decrease intensity
• When intensity is reduced to 0, the device returns to standby mode
• Key Lock / Unlock:
• If no button is pressed for 15 seconds, the keypad will automatically lock. Only the [CH1-] or [CH2-] keys can unlock it.

• Electrode Detection:
  If poor electrode contact is detected, the corresponding channel will automatically reset to zero and stop output.

• End of Treatment:
  When the countdown finishes, all channels are turned off and the device returns to power-on mode.

• Pause:
  Press the [P] key to pause treatment; press [P] again to resume.

Precautions

• After use or cleaning, do not expose electrodes to environments prone to bacterial growth. Store electrodes in a sealed bag in a clean, dry, and cool place.
• If electrode adhesion weakens, lightly moisten with clean water to restore partial stickiness. Replace electrodes once aged.
• If skin allergy, redness, swelling, or itching occurs after replacing electrodes, discontinue use immediately as it may indicate material incompatibility.
• Electrodes are for personal use only. Do not share electrodes to avoid cross-infection.
• Do not exceed 90 minutes of treatment per day. Excessive use may cause skin irritation or burns. Mild soreness after initial use is normal and indicates therapeutic effectiveness; it usually subsides after several days.

This document provides a comprehensive overview of the KLM808 Low-Frequency Therapy Device, including its usage methods, therapeutic applications, operating instructions, precautions, and technical specifications. Please read and follow the instructions carefully before use.

About Customization Instructions

The KLM808 Low-Frequency Therapy Device is a professional-grade TENS/EMS physiotherapy solution designed for pain relief, muscle stimulation, and rehabilitation. In addition to its stable therapeutic performance, KLM808 fully supports OEM & ODM customization, making it an ideal product for medical brands, wellness companies, distributors, and private-label programs.


Customization Capabilities (Key OEM/ODM Advantages)

Logo Customization

• Custom brand logo printing or engraving on the device housing
• Logo customization on packaging, manuals, and accessories
• Suitable for private label, distributor branding, and corporate health programs

UI Customization

• Custom LCD interface layout
• Customized icons, symbols, and language display
• Adjustable UI color schemes and backlight styles
• Localized interface for different markets (English, Chinese, Korean, etc.)

PCBA Customization

• Customized PCBA design based on functional requirements
• Adjustable output parameters (frequency, pulse width, intensity levels)
• Support for adding or removing therapy programs
• Hardware optimization for cost, power consumption, or regulatory compliance

This flexibility allows brands to create differentiated therapy devices rather than generic off-the-shelf products.


Applications & Target Markets

• Home healthcare & rehabilitation
• Sports recovery and physiotherapy
• Wellness and beauty equipment brands
• Medical device distributors
• Corporate health & employee wellness solutions


Manufacturing & Quality Assurance

• Stable dual-channel output architecture
• Strict quality control during PCBA assembly and final testing
• Suitable for CE / FDA / ISO-related compliance projects (depending on final configuration)
• Scalable production for small batch trials and mass production

• Rated Supply Voltage: DC 4.5V (3 × AAA 1.5V batteries)
• Output Channels: Dual-channel output
• Low Battery Indicator: Battery symbol display
• Backlight: White backlight

• Power Consumption:
• Max static current: < 50 µA
• Max operating current: < 150 mA
• Output Waveform: Biphasic symmetrical square wave (no DC electrolysis)
• Load Detection: Automatically shuts off output if electrode contact is poor when intensity > 1, and displays electrode symbol
• Power Saving Function: Automatically powers off after 3 minutes of inactivity in non-treatment mode
• Key Lock Function: Auto-lock after 15 seconds of inactivity during treatment mode
• Programs: 10 programs
• Output Intensity: 0–50 levels (500Ω load)
• Output Frequency: 1–150 Hz ±10%
• Pulse Width: 50–400 µs ±10%
• Treatment Time: 5–90 minutes
• Output Voltage: Maximum 50V (single direction)
• Electrode Size: ≥ 40 × 40 mm

• Storage Conditions:
• Temperature: -10°C to 55°C
• Humidity: 20%–93% RH
• Atmospheric pressure: 70–106 kPa

• Duty Cycle: Continuous operation
• Power Source Classification: Internally powered
• Applied Part Type: Type BF equipment
