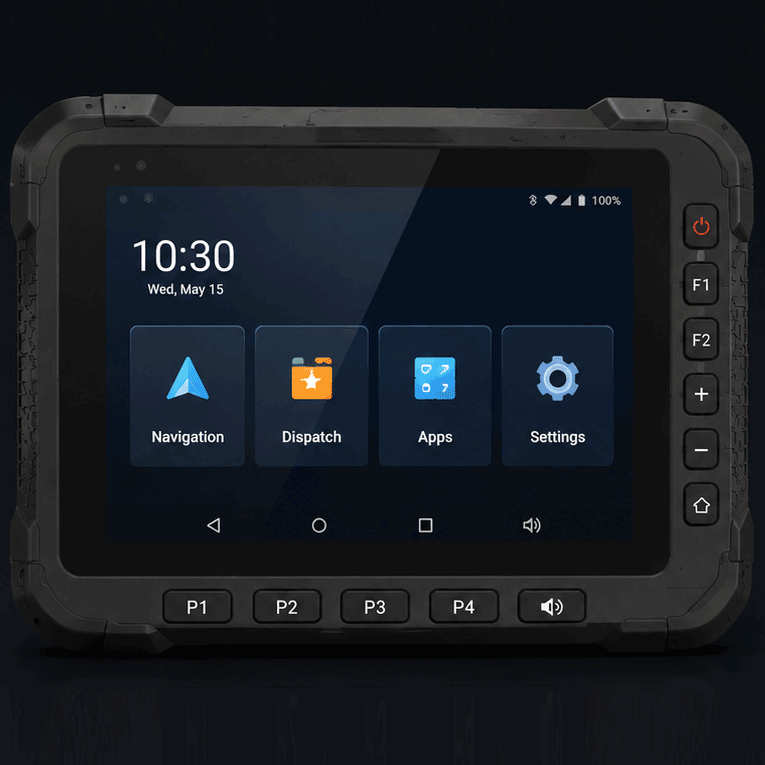

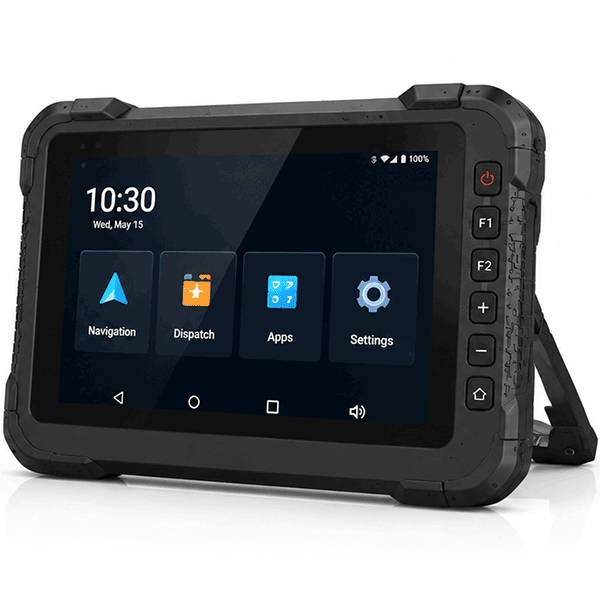

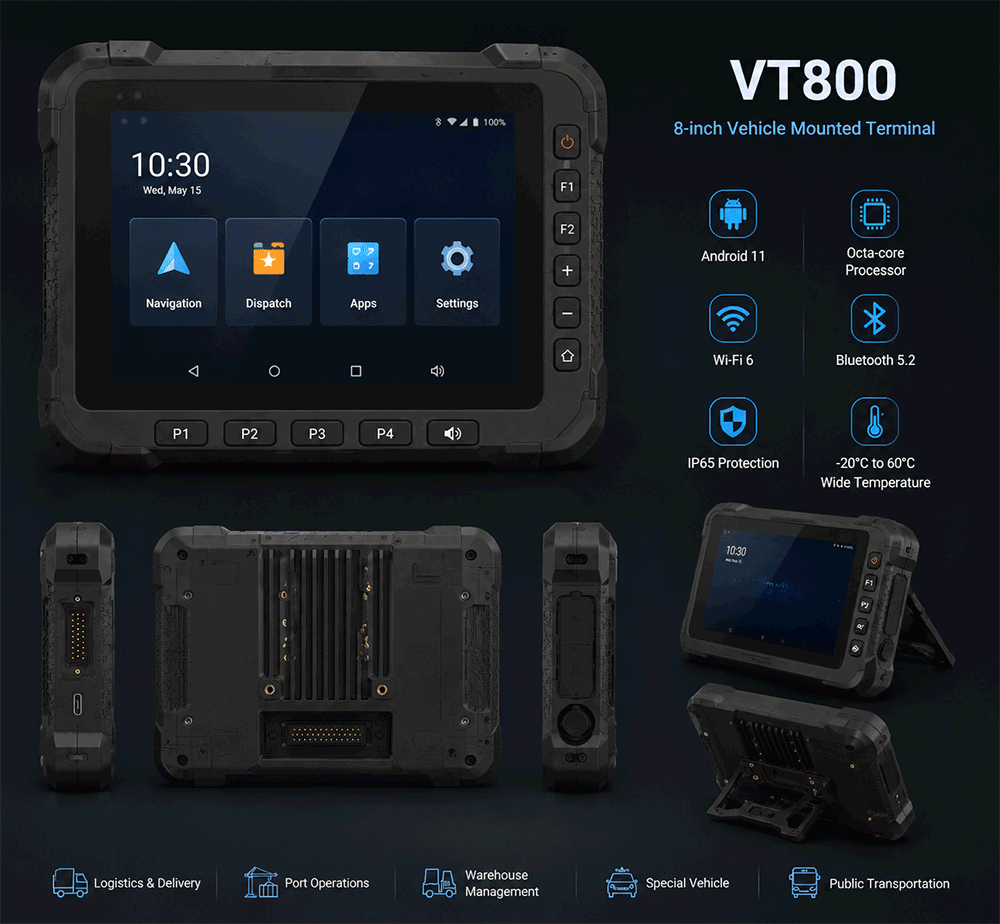

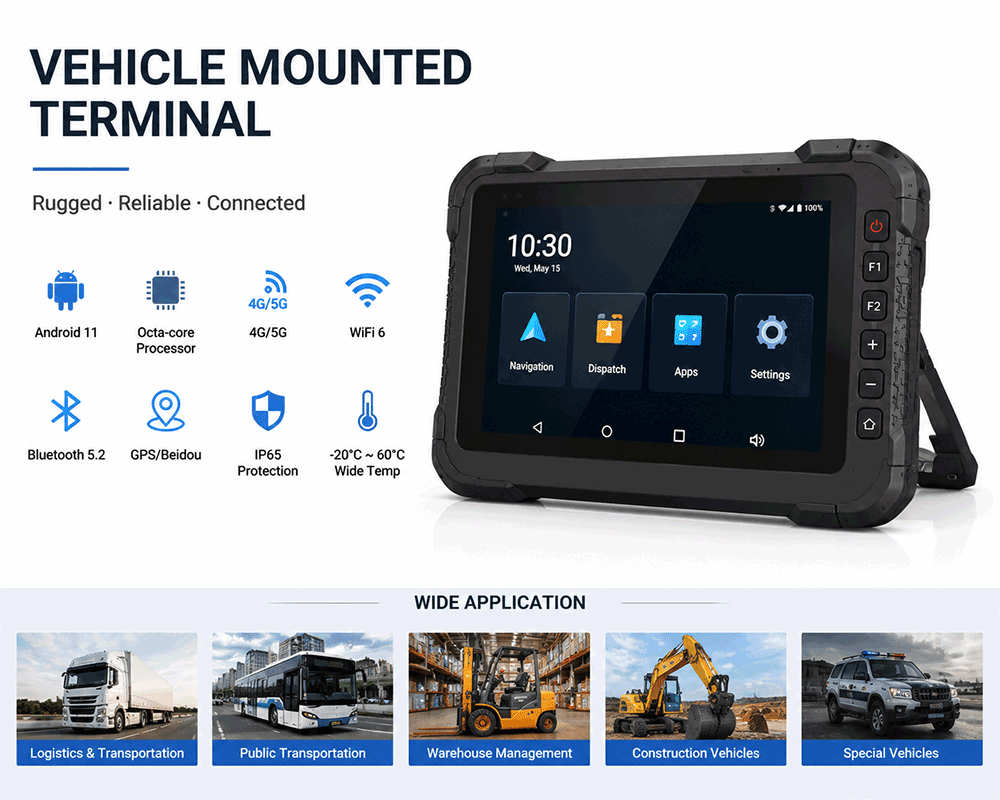

The Vehicle Mounted Terminal is a rugged industrial-grade computing device designed for in-vehicle applications such as logistics, public transportation, fleet dispatching, warehouse management, and special-purpose vehicles.

Built with a durable reinforced structure and high-performance computing platform, it ensures stable operation in harsh mobile environments including vibration, dust, humidity, and extreme temperatures.

The device supports real-time communication between vehicles and backend systems, enabling intelligent fleet scheduling, GPS tracking, video monitoring, and data collection.

With full OEM/ODM customization support, the terminal can be tailored in hardware, software, UI, and system integration to meet specific industry requirements.

🔹 KEY FEATURES (Product Highlights)

1. Rugged Industrial Design

• IP65/IP66 protection rating
• Shock and vibration resistant design
• Wide operating temperature: -20°C to 60°C
• Vehicle-grade power protection (9V–36V input)

2. High-Performance Computing

• Octa-core ARM processor (customizable platforms available)
• Android 11/12 or Linux OS
• Multi-task processing for navigation, dispatching, and monitoring
• Smooth touch experience with industrial capacitive screen

3. Advanced Connectivity

• 4G LTE / 5G optional
• WiFi 6 high-speed wireless connection
• Bluetooth 5.2 support
• High-precision GNSS (GPS / BeiDou / GLONASS)

4. Rich Expansion Interfaces

• CAN bus for vehicle communication
• RS232 / RS485 industrial ports
• USB 2.0 / USB 3.0
• GPIO, audio, and custom interfaces available
• External camera, printer, RFID, and scanner support

Display

• Size: 7” / 8” / 10.1” / 12.1” optional
• Resolution: 1280×800 / 1920×1200
• Touch: Multi-point capacitive touch (glove support optional)

System

• CPU: ARM Cortex-A53 / A76 Octa-core (customizable)
• RAM: 3GB / 4GB / 6GB / 8GB optional
• Storage: 32GB / 64GB / 128GB eMMC
• OS: Android 11 / 12 / Linux

Communication

• Cellular: 4G LTE / 5G optional
• WiFi: IEEE 802.11 a/b/g/n/ac/ax (WiFi 6)
• Bluetooth: 5.0 / 5.2
• GNSS: GPS / BeiDou / GLONASS

Industrial Performance

• Protection level: IP65 / IP66
• Operating temperature: -20°C ~ 60°C
• Shock resistance: Vehicle-grade standard
• Power input: 9V–36V DC wide voltage

Interfaces

• USB 2.0 / USB 3.0
• RS232 / RS485
• CAN Bus
• GPIO expansion
• Audio / video interfaces

Installation

• Vehicle-mounted bracket installation
• VESA standard mounting support
• Custom embedded installation options available

🔹 OEM / ODM CUSTOMIZATION

We provide full customization services for global customers:

Hardware Customization

• CPU platform selection and motherboard design
• Interface expansion (CAN, RS485, multiple serial ports)
• High-brightness sunlight-readable display
• 5G module, RFID, camera integration

Software Customization

• Android system deep customization
• Boot logo and UI branding
• Pre-installed fleet management applications
• SDK/API integration support

Industry Solutions

• Logistics & delivery fleet management
• Public transportation dispatch system
• Construction vehicle tracking system
• Warehouse and port logistics control
