1. Introduction: Custom Android Bus Validator with NFC and QR Code for Smart Transportation

Global public transit infrastructure continues migrating to open cashless ticketing ecosystems. Transit system integrators, transport payment vendors, smart city contractors, and vehicle terminal purchasers are gradually retiring closed proprietary readers and choosing flexible Android bus validator NFC QR code OEM hardware.

An open Android NFC QR code bus validator enables NFC transit card swiping, dynamic QR ticket verification, 4G real-time data transmission, and GPS fleet tracking. The open Android framework allows AFC software developers to deploy self-developed ticketing applications without vendor lock-in, making it ideal for city buses, airport shuttles, corporate fleets, and ferry services.

YunBlaze Technologies is an Industrial Android Platform & AIoT Smart Terminal Solution Provider. As a high-tech enterprise with over 15 years of embedded hardware R&D and manufacturing experience, we deliver end-to-end industrial Android transit payment terminal OEM and ODM services. Our services for transit validation equipment include:

• Android OS depth customization (Android 12 / 13 / 14 preferred)
• NFC contactless reader integration and driver adaptation
• Industrial QR scanner module development
• Vehicle-grade rugged hardware design
• Complete manufacturing of custom bus fare validators

Our open architecture perfectly meets the demands of overseas software teams developing independent Automatic Fare Collection platforms. Clients can operate their own AFC software without pre-installed locked payment systems.

2. What Is an Android NFC QR Code Bus Validator?

2.1 Definition of Android Bus Validator

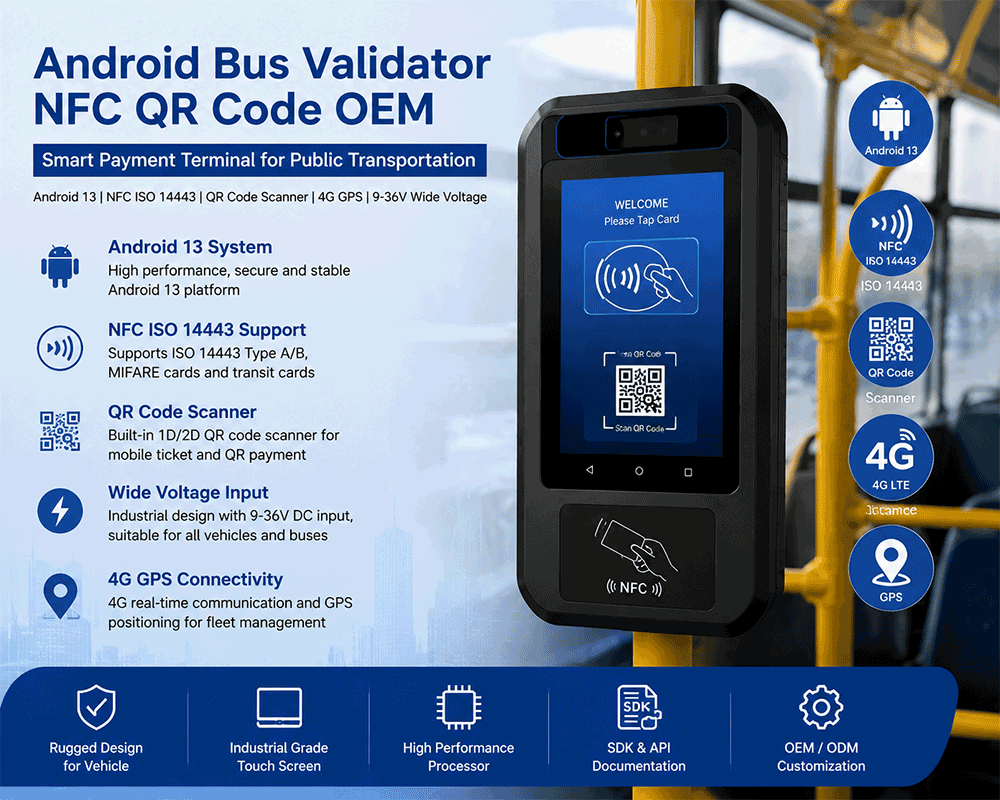

An Android NFC QR code bus validator is an industrial vehicle-mounted intelligent terminal running Android or embedded Linux with Qt framework. Developed for transit fare verification, it supports reading ISO14443 NFC smart cards, scanning static and dynamic QR tickets, synchronizing transaction data with cloud AFC platforms, and extending to voice broadcast, positioning, and edge AI identification.

Unlike consumer Android tablets, this industrial Android transit payment terminal adopts wide-voltage vehicle power circuits, reinforced casing, and long-life components to resist vehicle vibration, extreme temperature fluctuation, and unstable power supply.

2.2 Main Applications

• Public Transportation Scenarios: Urban public buses and BRT feeder routes, school buses and campus shuttle fleets, airport passenger shuttles and ferries, corporate staff shuttles, and tourist sightseeing buses.
• Smart Mobility & AFC Projects: Automatic Fare Collection (AFC) systems, multi-modal transit ticketing platforms, fleet operation and passenger flow management, closed-loop mobility management for campuses, parks, and residential areas.

3. Key Features of Our Android Bus Validator OEM Solution

3.1 Android 12/13/14 Operating System Customization
Our hardware platform supports open Android 12, Android 13, Android 14, or embedded Linux Qt solutions. For partners developing .NET MAUI cross-platform ticketing software, we recommend open Android builds with full peripheral access.

• Core advantages: Fully open system, no mandatory preloaded proprietary ticketing APK.
• Support third-party APK installation via ADB, USB, and local installers.
• Custom boot animation, system UI, permission management, and background service optimization.
• Remote device management and OTA firmware update.
• Optional Google Mobile Services for overseas projects.

Standard Android applications run directly on our hardware. We have completed adaptation testing for .NET MAUI Android applications, suitable for global AFC platform deployment.

3.2 Integrated NFC Reader for Transportation Payment
The embedded NFC module supports multi-protocol read-write functions to satisfy global transit payment standards:

• ISO 14443 Type A / Type B, FeliCa, LEGIC
• MIFARE Classic protocols, T=CL communication
• SAM card slot compliant with ISO7816 Class A & B, T=0 / T=1

NFC functions can be called via standard Android NFC API. If low-level card protocol and custom encryption development are required, we provide complete technical materials for secondary development. This hardware is widely used as an Android POS terminal NFC ISO 14443 bus validation device.

3.3 Built-in QR Code Scanner Module
Equipped with an industrial embedded scanning engine for 1D and 2D barcode identification, supporting continuous scanning during passenger peak hours:

• Dynamic QR payment codes and static paper e-tickets.
• Mobile ticket verification for open-loop mobile payment scenarios.
• Dual access options: native Android Camera API or dedicated scanner SDK with full documentation.

A dual CMOS AI camera is reserved for future upgrades. Custom adaptive visual algorithms support face recognition, palm print recognition, and fingerprint recognition.

4. Industrial Design for Vehicle Environment

Vehicle-mounted transit terminals operate under harsh conditions: persistent vibration, extreme temperatures, dust, and unstable vehicle power supply. Our industrial Android tablet NFC reader 9-36V hardware design solves these practical pain points for bus and ferry projects worldwide.

Industrial hardware highlights:

• Standard power: DC12V/24V/48V; customizable to 9–36V wide voltage for global vehicle deployment.
• Built-in surge protection and anti-reverse connection circuit.
• IP54 dustproof and waterproof enclosure.
• Operating temperature: -25℃ ~ +70℃; storage temperature: -30℃ ~ +70℃.
• Service life over 6 years under continuous daily operation.
• CE certification to support market access in EU, North America, and Latin America.

5. Rugged Android Vehicle Terminal with 4G GPS NFC

Beyond ticket verification, this rugged Android device 4G GPS NFC for vehicle works as an on-board edge gateway for fleet management:

• Embedded GPS + BeiDou dual satellite positioning module.
• 4G/3G/2G cellular network, Wi-Fi IEEE802.11 b/g/n, optional 10/100M adaptive Ethernet.
• Real-time uploading of transaction data, vehicle location, and device status.
• Offline data caching ensures data integrity under intermittent network conditions.

Fleet operators can integrate location tracking, passenger flow statistics, and payment data into one unified platform without additional independent positioning hardware.

6. Hardware Architecture of Android NFC QR Validator

• Processor: Multi-core ARM Cortex-A7@1.2GHz, built-in NPU for edge AI inference.
• Storage: 2GB LPDDR RAM + 16GB eMMC Flash (4GB RAM + 64GB Flash upgrade available).
• Modules: NFC RFID unit, 1D/2D scanner, dual CMOS AI camera, TFT-LCD touch screen.
• Interfaces: USB Host ×1, USB Device ×1, RS232 ×1, RS485 ×1, optional CAN bus, Wiegand port, relay output, switch input.
• Wireless: 4G LTE, Wi-Fi, GPS & BeiDou positioning.
• Audio: Single-channel 2W/8R loudspeaker, TTS voice prompt support.
• Indicators: Controllable red LED and green LED status lights.
• Software Structure: Android 12/13/14 or Linux with Qt Framework.
• Encryption algorithms: HASH, MD5, DES, AES, RSA, ECC, SM2.
• Development resources: Complete SDK, API documents, Java / Qt demo source code.

7. Android Hardware SDK and Software Customization Service

We provide full development support for system integrators and AFC software developers. All peripheral hardware functions are open for secondary development. Our Android hardware SDK NFC QR scanner documentation covers all core peripherals:

• NFC module, QR scanner, LED, loudspeaker, serial port, and CAN bus control instructions.
• Ready-to-use sample source code for Android and Linux Qt platforms.
• Engineering technical support for API debugging and driver adaptation.
• Firmware modification, system permission configuration, and boot customization.

For partners developing .NET MAUI ticketing platforms, our technical team offers guidance for hardware docking. We can also provide demo videos showing APK installation, QR scanning, and NFC card reading for project evaluation.

8. OEM/ODM Customization Process for Android Bus Validator

1. Requirement Analysis: We confirm core specifications with clients: supported payment media (NFC/QR), OS version, network configuration, vehicle power standard, AI function expansion, and certification requirements.
2. Hardware Customization: PCB and PCBA adjustment; selection of NFC, scanning, and camera modules; mechanical housing design, shell modification, and customer logo branding.
3. Software Development: Android/Linux firmware tailoring; peripheral driver debugging; SDK packaging and technical document delivery.
4. Prototype, Testing & Mass Production: Prototype delivery for software integration testing; environmental reliability testing, EMC testing, and CE certification; stable mass production with flexible MOQ policy.

9. Why Choose Our Android Bus Validator OEM Factory?

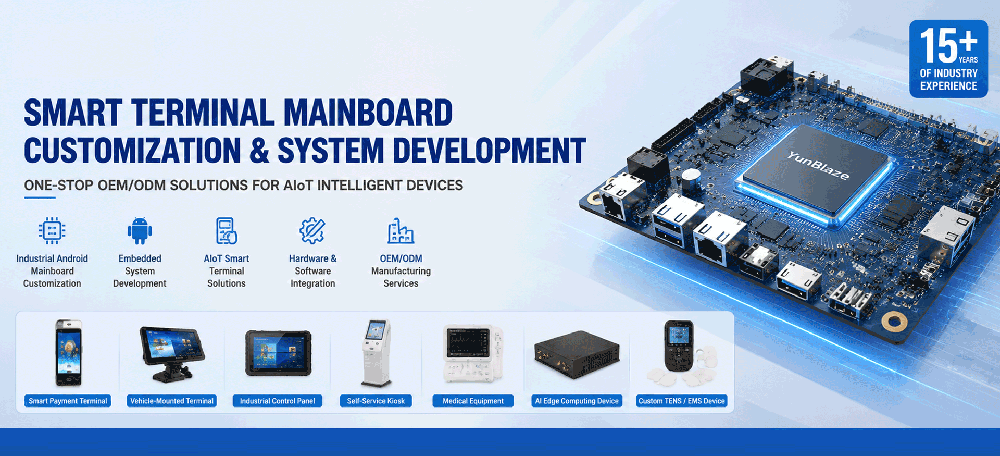

YunBlaze Technologies is not merely a PCBA assembly factory. We deliver one-stop industrial Android platform and intelligent terminal solutions.

1. Strong Industrial Android R&D Capacity: Independent embedded motherboard design team with mature experience in Android driver development and edge computing hardware.
2. Rich Smart Transportation Industry Experience: We have delivered customized industrial Android transit payment terminals for public transit, shuttle fleets, and AFC projects globally.
3. Full-Cycle OEM & ODM Capability: From ID structural design, circuit development, OS customization to finished product assembly, testing, and global shipment.
4. Long-Term Stable Supply & Technical Support: Headquartered in Shenzhen with mature electronics supply chains. We provide continuous hardware maintenance and firmware iteration support.

10. Applications of Android NFC QR Validators Worldwide

• Urban Public Buses: NFC transit card + mobile QR payment, connected to municipal AFC backends.
• Airport & Ferry Shuttles: Mobile e-ticket verification combined with vehicle route tracking.
• University Campus Buses: Student NFC ID card swiping and temporary visitor QR tickets.
• Enterprise & Community Shuttles: Staff access control, passenger statistics, and fixed-line scheduling.
• Tourist Transport Services: Offline ticket validation for areas with unstable cellular coverage.

11. Technical Specifications & Product Comparison

Complete Technical Specification Table

Item	Standard Configuration	Optional Upgrade
CPU	Multi-core ARM Cortex-A7@1.2GHz, Built-in NPU	Higher-performance multi-core processor
Operating System	Android 12/13/14 / Linux + Qt Framework	OS version customized on request
Memory	2GB LPDDR RAM + 16GB eMMC Flash	4GB RAM + 64GB eMMC
Encryption Algorithm	HASH, MD5, DES, AES, RSA, ECC, SM2	Custom encryption module support
Working Voltage	DC12V/24V/48V	9–36V wide voltage for global vehicle projects
Power Consumption	≤10 W	Low power optimized version
RFID Support	ISO14443 A/B/FeliCa, LEGIC; MIFARE, T=CL	Extended UHF RFID available
SAM Card Slot	ISO7816 A&B, T=0 / T=1	Dual SAM slots
Display	4 inch TFT-LCD, 480*800, outdoor readable	4.5 inch TFT-LCD, 720*1280
Scanning System	Built-in 1D/2D QR scanner	High-speed long-distance scanning module
Camera	Dual CMOS AI camera with MIPI/DVP interface	Higher resolution camera for face recognition
Communication	USB, RS232, RS485, CAN(Opt), Wiegand, Relay, 4G, Wi-Fi, GPS/Beidou	10M/100M Ethernet port
Audio	2W/8R speaker, TTS voice broadcast	Custom voice audio file support
LED Indicator	Red LED, Green LED	RGB controllable LED
Dimension	190mm140mm50mm	Custom housing size
Weight	≤1.5kg	Lightweight structural redesign
Protection Grade	IP54	Upgrade to IP65
Working Temp	-25℃ ~ 70℃	Extended temperature grade available
Service Life	>6 years	—
Certification	CE	FCC, RoHS as additional options

Comparison: Closed Validator vs YunBlaze Open OEM Android Bus Validator

Comparison Item	Traditional Closed Bus Validator	YunBlaze Android Bus Validator OEM
App Installation	Locked, only vendor pre-installed software	Fully open; install custom APK via ADB / USB
NFC & QR Access	Proprietary closed interface	Standard Android API + extended open SDK
OS Upgrade	Dependent entirely on hardware supplier	Independent upgrade plan aligned with your schedule
.NET MAUI App Support	Not compatible	Supports .NET MAUI Android applications
Hardware IO Control	Limited configurable ports	LED, speaker, relay fully controllable by customer APP
Vendor Lock-in	High risk for multi-region long-term projects	Build unified hardware platform for global deployment
Future AI Expansion	Fixed hardware without upgrade space	Built-in NPU and AI camera for passenger recognition upgrades

12. FAQ

Q1: Which Android version is pre-installed on the Android bus validator?
A: We offer Android 12, Android 13, and Android 14. Android 13 and 14 are recommended for new AFC platform development. Embedded Linux with Qt framework is available as an alternative.

Q2: Can we install our own APK without modifying factory firmware for the Android NFC QR code bus validator?
A: Yes. Our open Android build supports independent third-party application installation. There is no mandatory preloaded ticketing software from YunBlaze.

Q3: Can we install applications via ADB commands?
A: ADB access is supported. We can enable persistent ADB mode for prototype batches, and lock ADB access for formal production based on security requirements.

Q4: Is Google Play Services available?
A: Google Mobile Services can be pre-installed as an optional service for overseas market orders.

Q5: Can standard Android applications run directly? Are .NET MAUI Android applications supported on this industrial Android transit payment terminal?
A: Generic standard Android APKs run without modification. We have completed adaptation testing for .NET MAUI cross-platform Android applications; minor peripheral integration work enables formal deployment.

Q6: How to access the built-in QR scanner on the Android bus validator?
A: Two options: access through standard Android Camera API, or use dedicated scanner SDK with complete documentation and demo source code.

Q7: Is NFC accessible via standard Android NFC API?
A: Yes. The NFC module supports native Android NFC API calls. For low-level card protocols and SAM card operations, we provide extended SDK documents.

Q8: Can our application control onboard LEDs, speaker, and buzzer?
A: All peripherals including status LEDs, audio output, relay, and switch input can be controlled directly via APIs inside your Android application.

Q9: Do you supply complete Android hardware SDK NFC QR scanner documentation and sample source code?
A: All formal customized orders include full SDK manuals, Java/Qt demo source code, and hardware definition documents.

Q10: Can we order samples of the Android bus validator NFC QR code OEM terminal? What are sample price, MOQ and lead time?
A: Sample testing is available. Sample pricing depends on exact hardware configuration. MOQ is negotiable for mass orders. Sample lead time is 7–15 working days; mass production lead time will be confirmed based on order volume.

Q11: Can products be shipped directly to Brazil and other Latin American countries?
A: We arrange global door-to-door delivery, including direct shipments to the USA, Brazil, EU, and Southeast Asia. We provide complete export documents to support customs clearance.

Q12: Can you provide demo videos showing APK installation, app launch, QR scanning, and NFC card reading?
A: Yes. After confirming sample requirements, we can record demonstration videos covering all core functions for your internal project evaluation.

13. Conclusion: Partner with an Experienced Android Bus Validator OEM Manufacturer

The global smart transportation industry is shifting away from closed, locked ticketing hardware toward open, customizable platforms. YunBlaze’s Android bus validator NFC QR code OEM solution delivers industrial-grade vehicle terminals built on open Android architecture, integrating NFC contactless payment, dynamic QR verification, 4G/GNSS communication, and expandable edge AI capability.

Our industrial Android transit payment terminal is tailored for AFC software developers, transit system integrators, and smart city contractors:

✅ Open Android 12/13/14 operating platform
✅ ISO14443 NFC + industrial QR code scanning
✅ Vehicle-grade rugged hardware suitable for buses, ferries, and shuttle fleets
✅ Rich industrial communication interfaces and wide voltage power input
✅ Complete SDK, technical documentation, and ongoing engineering support
✅ One-stop OEM / ODM development and mass production services

If you are searching for a reliable Android Bus Validator NFC QR Code OEM manufacturer to build a standardized long-term hardware platform for your smart transportation AFC projects, contact YunBlaze Technologies to discuss your customized transit payment terminal solution.

CTA: Looking for a reliable Android Bus Validator NFC QR Code OEM manufacturer? Contact us for customized smart transportation terminal solutions.
