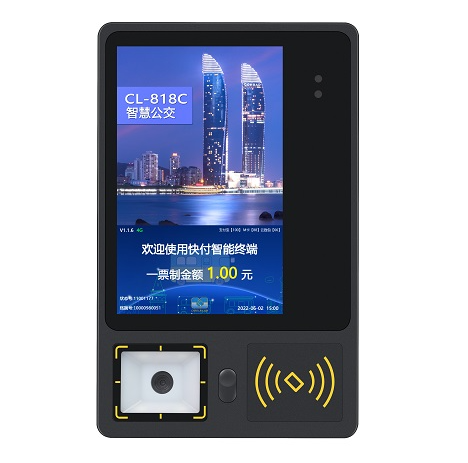

In the rapidly evolving landscape of smart cities, the efficiency of public transportation hinges on the reliability of its infrastructure. At the heart of this transformation lies the Smart Bus Validator, a sophisticated terminal designed to streamline fare collection and enhance the passenger experience. Backed by the innovation of YunBlaze Technologies, this device is not just a card reader; it is a comprehensive solution for the modern transit ecosystem.
🚀 Precision Engineering for Demanding Environments
Public transport environments are unforgiving, requiring hardware that is robust, fast, and always reliable. The YunBlaze Smart Bus Validator is engineered to withstand the rigors of daily commuter use while maintaining high-speed performance.
At its core lies a Quad-core Cortex-A9 CPU clocked at 1.4GHz, paired with an integrated Mali-400 MP4 GPU. This processing power ensures that transaction times are instantaneous, reducing queue times at bus doors. With 1GB of DDR3 RAM and 16GB of eMMC storage (expandable via 64G TF card), the device handles complex data loads effortlessly.
Crucially, this validator is built for resilience. It operates seamlessly in temperatures ranging from -25℃ to 65℃, ensuring functionality whether it is a freezing winter morning or a sweltering summer afternoon. The engineering plastic housing protects the internal components, while the 8-inch TFT-LCD display (1280*800) provides clear visual feedback to passengers.
💳 Versatile Payment and Security Standards
Security and versatility are paramount in electronic payment systems. This Smart Bus Validator supports the ISO-14443 Type A/B standards, operating at a frequency of 13.56MHz. It is capable of reading a vast array of card types, including MiFare Classic, MiFare Desfire, and CPU cards.
The device boasts an impressive capacity, storing up to 5 million cards and maintaining a blacklist of 200 million entries, ensuring that lost or stolen cards are instantly flagged. For added security, the system provides immediate voice and visual warnings if a card balance is insufficient or if the data memory is full.
📡 Advanced Connectivity and Positioning
Modern transit requires real-time data. The YunBlaze validator is equipped with comprehensive communication modules, supporting 2G, 3G, and 4G wireless networks, as well as optional Wi-Fi and Bluetooth. This allows for real-time data uploading, remote server management, and live black-list downloading.
Furthermore, the device features an optional GPS and Beidou positioning module. This geo-location capability is essential for tracking vehicle routes, validating zone-based fares, and integrating the validator into broader smart city data grids.
📊 Technical Specifications Overview
|
Feature |
Specification |
|
Operating System |
Android 5.1 |
|
Processor |
Quad-core Cortex-A9 1.4GHz |
|
Display |
8-inch TFT-LCD (1280*800) |
|
Storage Capacity |
16G eMMC (Default) / Max 64G TF Card |
|
Data Retention |
>2 Million detailed records locally |
|
RFID Standards |
ISO-14443 Type A/B, Mifare, CPU Card |
|
Communication |
4G/3G/2G, USB, RS485, TTL-232 |
|
Power Supply |
DC 8V-50V (Wide voltage input) |
|
Dimensions |
270 x 169 x 72 mm |
🌐 About YunBlaze Technologies: Empowering Intelligent Futures
The Smart Bus Validator is a testament to the innovation driven by Shenzhen YunBlaze Technology Co., Ltd. As a national high-tech enterprise, YunBlaze specializes in the research, development, and manufacturing of intelligent terminal solutions.
Guided by the vision of "Technology-Driven Scenario Innovation," YunBlaze integrates advanced IoT technologies and secure payment architectures to deliver smart, reliable devices. From customized smart payment terminals for cafeterias to integrated fare collection systems for public transport, their portfolio is vast and versatile.
Why Partner with YunBlaze?
By choosing YunBlaze, transit authorities and system integrators gain a partner dedicated to accelerating digital transformation through superior hardware and intelligent design.
