Custom Industrial Grade Event & Vehicle Ticket Validation Hardware

Views :

Update time : 2026/6/15 10:41:33

In the high-stakes environment of live events, festivals, public transportation, and secure venues globally, the entry and fare collection point defines user experience, operational efficiency, and on-site security. A single bottleneck at gates or vehicle toll points not only frustrates attendees and passengers but also directly reduces revenue, delays schedules, and triggers security risks. For global event organizers, public transport operators, and system integrators, selecting reliable, industrial-grade ticket validation hardware is a core infrastructure decision for long-term stable operation.

With diverse access control and fare collection devices available across Europe, North America, the Middle East, and global markets, it is critical to invest in an all-in-one terminal that balances ultra-fast recognition, offline stability, multi-scenario compatibility, and seamless software integration. Our industrial Android smart ticket and payment terminal, professionally developed and manufactured byYunBlaze Technologies (Shenzhen), perfectly adapts to event access control and urban public transport fare collection scenarios, delivering customized, high-reliability solutions for global clients.

Product Overview: Industrial-Grade All-in-One Payment & Ticket Validation Terminal

Our newly upgraded industrial-grade vehicle-mounted and venue ticket validation terminal is a multi-functional intelligent access control and fare collection device built on mature Industrial Android and AIoT technology. Tailored for urban public transport full-payment toll collection and large-scale event venue ticket verification, this terminal supports full-scenario payment and identification applications, including urban interconnection payment, mobile NFC (RF-SIM) payment, QR code payment, financial IC card electronic cash, optional facial recognition, and optional second-generation ID card recognition.

Powered by the stable Android 10 operating system, this open-platform terminal supports secondary development, custom APK installation, and remote management. Widely applicable to city bus toll collection, large festivals, sports events, exhibition venues, and secure access control sites, it integrates industrial durability, multi-dimensional identification, and intelligent management capabilities, meeting the diversified deployment needs of global commercial and public service scenarios.

Core Advantages for Event & Venue Deployment: Non-Negotiable Performance Standards

1. Offline Resilience & Real-Time Feedback (Core Scenario Advantage)

Network dependency is the biggest failure point of traditional event access control equipment. Venues with thousands of concurrent users and crowded public transport environments often face severe network congestion and signal interruptions. Our industrial ticket validator eliminates network limitations entirely—offline operation is a standard configuration rather than an optional function.

The device caches massive local credential data to complete instant offline ticket verification and payment identification when the internet drops. All offline data will be automatically and seamlessly synchronized to the backend once the network connection is restored, ensuring zero data loss and zero missed verification. Equipped with high-definition indicator lights and a high-volume buzzer plus 400+ built-in customizable voice prompts, it provides unambiguous visual and audio real-time feedback. Operators and drivers can complete rapid verification without staring at the screen for a long time, effectively shortening queuing time and improving venue and vehicle passage efficiency.

2. High-Throughput Hardware Performance for Dense Scenarios

Engineered for high-frequency, high-density verification scenarios such as peak-hour public transport and large-scale events, every hardware specification of this terminal is optimized for extreme throughput and stable operation. It perfectly supports complex QR code decoding, encrypted RFID card identification, and multi-type payment verification without lag or delay.

3. Open System & Full Customization for Seamless Integration

Hardware value depends on software compatibility and scalability. Different from traditional closed ticket verification devices, our terminal adopts an open industrial Android platform, supporting custom Android APK installation, OTA remote upgrades, and MDM mobile device remote fleet monitoring. Complete SDK development kits and well-documented open APIs enable developers to freely customize verification logic, control relay gates and turnstiles, and realize efficient backend data communication.

Meanwhile, we support full-dimensional hardware customization, including customized shell colors, brand LOGO printing, and specialized mounting brackets for turnstiles, scanners, and bus handrails. The device can be perfectly integrated with various venue styles and vehicle operation workflows, meeting the personalized branding and deployment needs of global clients.

4. Global Compliance & Ultra-Long Lifecycle Support

For cross-border event and public transport projects, regional certification compliance is the premise of smooth deployment. Our ticket validation terminal has passed FCC, CE, SABER international certifications, fully meeting the regulatory standards of Europe, North America, the Middle East, and other global regions, effectively avoiding customs delays and operational risks.

Backed by YunBlaze’s professional industrial hardware manufacturing system, the product features a 15-year ultra-long service lifecycle, stable spare parts supply, and standardized RMA after-sales processes. It supports a 1-year standard warranty and optional 5-year extended warranty, maximizing clients’ long-term ROI and ensuring stable operation of equipment for years.

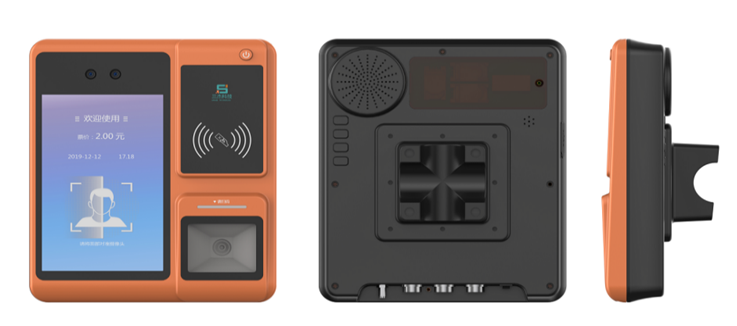

Device Appearance & Industrial Design

Adopting a compact industrial integrated design, the terminal features a neat and durable body with overall dimensions of 203mm*232mm*55mm. It is equipped with a 7-inch high-brightness anti-glare touch display on the front and a 4-bit digital display tube on the back, realizing dual-sided status display for convenient operation and viewing from multiple angles.

With an IK6 anti-collision grade and IP56 dustproof and waterproof protection level, the device resists collision, dust, rain, and high and low temperature erosion, adapting to harsh outdoor event venues and complex vehicle operating environments. It supports fixed installation on 32mm-35mm vertical and horizontal handrails, with flexible and stable installation methods suitable for buses, turnstile gates, and self-service verification stations.

Full Device Technical Parameters

Item	Parameter Details	Item	Parameter Details
CPU/OS	Multi-core ARM Cortex-A53 processor, 1.8GHz main frequency; Android 10 OS	Face Recognition (Optional)	Dual binocular camera, support AI facial recognition technology
Memory/Storage	2G DDR3 RAM + 16G Flash storage	ID Card Recognition (Optional)	LF/HF/UHF multi-band card reader
Display Assembly	7-inch 1024*600 TFT Mipi interface, TP touch screen; rear 4-digit digital tube display	IP Protection Level	IP56 dustproof and waterproof
Card Reading & Scanning Distance	<10cm (optimized for wristband and card reading to avoid misreading)	Data Capacity	16GB Flash, supports 5 million blacklist records, 10 million operation records (expandable); 500 customizable remote-upgradable voice files
RF Performance	Supports ISO/IEC 14443 Type A/B non-contact IC cards (Mifare1 S50/S70/U1, dual-interface CPU cards, UnionPay cards, NFC mobile phones)	MTBF	>30000 hours mean time between failures
Communication Interfaces	2RS232, 1RS485, CAN bus; WiFi 802.11b/g/n, BT4.0LE, Ethernet (optional)	Recognition Speed	<500ms card/wristband verification time
USB Interface	USB2.0, supports U disk data communication	Clock System	Perpetual calendar real-time clock, error <20s/month, supports background & infrared automatic time calibration
Wireless Communication	Full Netcom (LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM); customizable overseas frequency bands	Function Keys	4 custom physical function keys
Positioning	Supports GPS/GLONASS/Beidou multi-satellite positioning	Power Supply	9V-38V DC input, POE optional
Card Slots	4 SAM card slots + 1 SIM card slot (ISO7816 standard)	Power Consumption	＜15W low power consumption
Sound Prompt	Buzzer + 400+ built-in voices, customizable recording and remote voice download	Dimension	203mm232mm55mm
Peripheral Interfaces	LCM, camera, audio, SD/TF card interfaces	Installation Bracket	Suitable for 32mm-35mm vertical/horizontal handrail fixing
UPS	Built-in UPS for power failure protection	IO Output	Relay driveable for access control/turnstile linkage
Anti-Collision Grade	IK6	Certifications	FCC/CE/SABER compliant
ESD Protection	8KV/16KV electrostatic discharge protection	Product Lifecycle	15-year long-term lifecycle
Working Temperature & Humidity	-25℃～+75℃, 0%~95% relative humidity	Warranty	1-year standard warranty, 5-year optional extended warranty
Storage Temperature	-40℃～+90℃	Development Support	Complete Demo software, customized APP development & SDK technical support

Industry Applications

With industrial-grade stability and multi-scenario compatibility, our smart ticket validation and payment terminals are widely deployed in global industries, covering smart public transportation, large-scale event security access, intelligent payment systems, and industrial intelligent terminals:

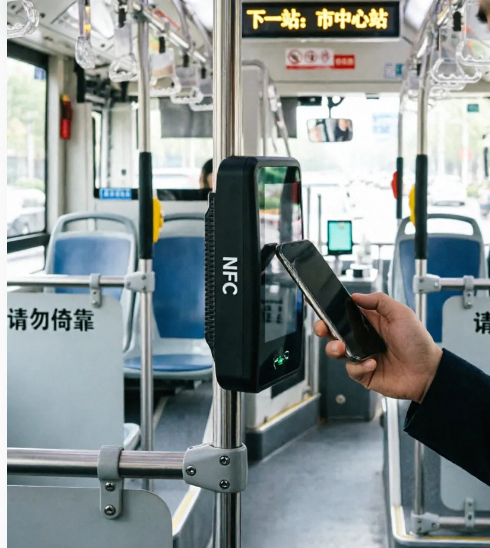

Public Transportation Fare Collection: Urban bus full-payment toll collection, public transport intelligent ticketing
Event & Venue Access Control: Festivals, sports events, exhibitions, scenic spots, and secure venue ticket verification
Smart Payment Systems: Multi-scenario offline/online intelligent payment identification
AI Vision & Intelligent Identification: Facial recognition access control, ID card verification scenarios
Industrial & Commercial Intelligent Terminals: Self-service kiosks, smart retail, fleet management terminals

About YunBlaze Technologies

YunBlaze Technologies is a professional high-tech enterprise based in Shenzhen, China’s core intelligent hardware innovation hub, focusing on Industrial Android Platform and AIoT Smart Terminal Solution supply globally. With 15+ years of electronic product development and intelligent hardware manufacturing experience, we provide end-to-end OEM/ODM customized solutions for global clients, helping transform innovative ideas into reliable commercial industrial terminals.

Our core business covers industrial Android motherboard customization, embedded system development, AIoT smart terminal design, smart payment & vehicle-mounted terminal development, AI edge computing hardware, and industrial automation controller customization. Different from traditional PCBA factories, we focus on providing complete industrial-grade software and hardware integrated solutions, covering motherboard architecture design, hardware engineering, software integration, industrial design, and mass production one-stop services.

Comprehensive Global Customization & Service Capabilities

We support flexible global OEM/ODM customized services, including PCB&PCBA development, Android OS customization, UI/UX design, brand LOGO & shell customization, mechanical structure design, embedded software development, and APP development technical support. With stable cross-border supply chain, low MOQ support, and rapid prototyping capabilities, we effectively reduce clients’ R&D costs and technical risks, accelerating product launch for global markets in Europe, America, the Middle East, and Southeast Asia.

Why Global Clients Choose YunBlaze

15+ years professional industrial intelligent hardware development experience
Professional Android embedded R&D team and complete technical support system
Strict industrial-grade hardware reliability and long lifecycle guarantee
Fast prototyping and efficient product iteration
Flexible low MOQ customization and stable cross-border supply chain
Full software and hardware integration services and global after-sales support

Conclusion & Custom Solution Inquiry

Choosing high-performance event access control and vehicle ticket validation hardware is not only about cost control but also about guaranteeing long-term operational stability and user experience. Our industrial-grade Android ticket validation terminal stands out with reliable offline resilience, ultra-fast recognition speed, open integration capabilities, global certification compliance, and ultra-long lifecycle support, perfectly meeting the high-standard deployment needs of global events and public transport scenarios.

If you are upgrading your event access infrastructure or public transport fare collection system, contact our professional technical team now to obtain customized hardware recommendations, sample pricing, and professional integration documentation tailored to your venue and regional deployment requirements.
